Process Data set: DRI production;DRI;NG-DR (MID) (en) en zh

Key Data Set Information
Location CN
Geographical representativeness description The average operating data of Coal-DR, NG-DR (MID), and NG-DR (ENE) demonstration projects in China are used as the benchmark for the LCI of DR routes.
Name
DRI production;DRI;NG-DR (MID)
Use advice for data set When utilizing the Life Cycle Inventory (LCI) data of Direct Reduced Iron production routes, ensure appropriate modeling of the specific technology (Coal-DR, NG-DR (MID), NG-DR (ENE), COG-DR, H-DR) adapted in the process. Since LCI is based on the average operating data from demonstration projects and supplemented by literature data from simulations, laboratory tests, and process modeling, users should confirm the alignment of their context with the Chinese benchmarks provided. Considerations of scaled-up feasibility, technology maturity, and regional variability must be taken into account for accuracy. For routes not fully scaled-up in China, such as COG-DR and H-DR routes, additional care should be taken to adapt the LCI data to the specific context of deployment.
Technical purpose of product or process Direct Reduced Iron (DRI) produced using the Natural Gas Direct Reduction (NG-DR) method, specifically the MID process, is used primarily as a raw material for steelmaking. In contrast to traditional blast furnace methods, NG-DR offers a cleaner and more energy-efficient means of producing iron units for use in electric arc furnaces (EAFs) or for further processing into various steel products.
Classification
Class name : Hierarchy level
  • ILCD: Unit processes / Energy carriers and technologies / Natural gas based fuels
General comment on data set Direct Reduced Iron (DRI) produced using the Natural Gas Direct Reduction (NG-DR) method, specifically the MID process, is used primarily as a raw material for steelmaking. In contrast to traditional blast furnace methods, NG-DR offers a cleaner and more energy-efficient means of producing iron units for use in electric arc furnaces (EAFs) or for further processing into various steel products.
Copyright No
Owner of data set
Quantitative reference
Reference flow(s)
Technological representativeness

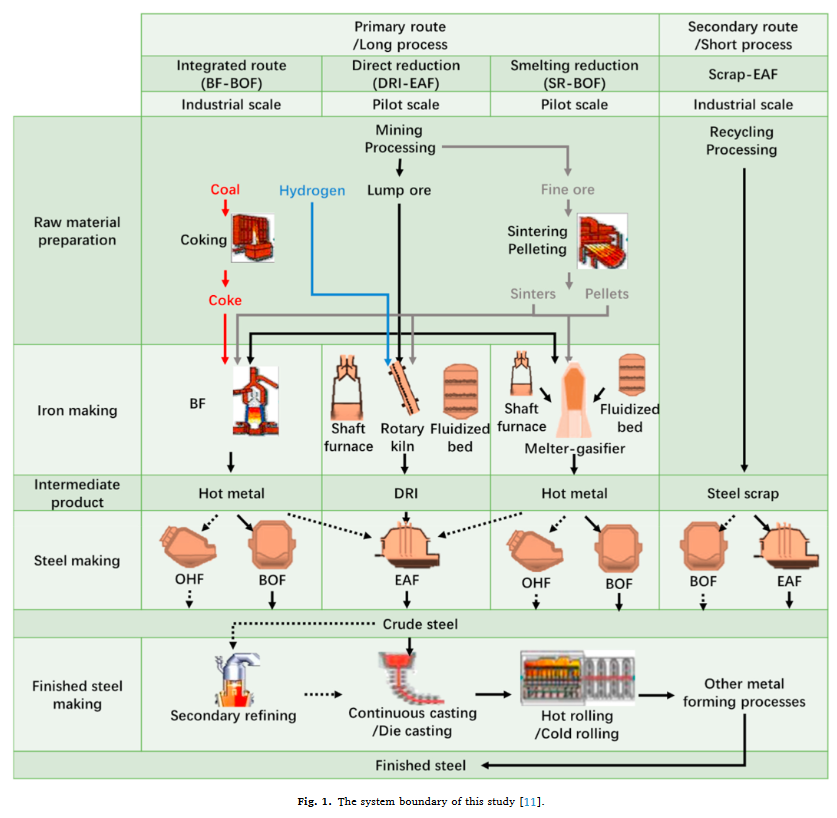

Flow diagram(s) or picture(s)
  • WAWbbRHa9oVyL8xkfQ4cmX0Jn4b.png Image
LCI method and allocation
Type of data set Unit process, single operation
Deviation from LCI method principle / explanations None
Deviation from modelling constants / explanations None
Data sources, treatment and representativeness
Deviation from data cut-off and completeness principles / explanations None
Deviation from data selection and combination principles / explanations None
Data treatment and extrapolations principles LCI of COG-DR and H-DR routes, which is not scaled-up in China are estimated based on Coal-DR routes combined with literature data from simulations, laboratory tests, and process modeling in Table 9 [49,50]. The LCI of Coal-DR is obtai
Deviation from data treatment and extrapolations principles / explanations None
Data source(s) used for this data set
Completeness
Completeness of product model No statement
Validation
Type of review
Dependent internal review
Reviewer name and institution
Data generator
Data set generator / modeller
Data entry by
Time stamp (last saved) 2023-12-28T09:58:48+08:00
Publication and ownership
UUID 69053066-29c1-4394-a8e8-92ebd4dd9d4a
Date of last revision 2024-04-20T15:06:04.935475+08:00
Data set version 00.01.005
Permanent data set URI https://lcadata.tiangong.world/showProcess.xhtml?uuid=69053066-29c1-4394-a8e8-92ebd4dd9d4a&version=01.00.000&stock=TianGong
Owner of data set
Copyright No
License type Free of charge for all users and uses

Inputs

Type of flow Classification Flow Location Mean amount Resulting amount Minimum amount Maximum amount
Product flow
Materials production / Raw materials 1357.3 kg1357.3 kg
General comment The average operating data of Coal-DR, NG-DR (MID), and NG-DR (ENE) demonstration projects in China are used as the benchmark for the LCI of DR routes. LCI of COG-DR and H-DR routes, which is not scaled-up in China are estimated based on Coal-DR routes combined with literature data from simulations, laboratory tests, and process modeling in
Elementary flow
Resources / Resources from water / Renewable material resources from water 300.0 m3300.0 m3
General comment The average operating data of Coal-DR, NG-DR (MID), and NG-DR (ENE) demonstration projects in China are used as the benchmark for the LCI of DR routes. LCI of COG-DR and H-DR routes, which is not scaled-up in China are estimated based on Coal-DR routes combined with literature data from simulations, laboratory tests, and process modeling in
Elementary flow
Emissions / Emissions to air / Emissions to air, unspecified 50.0 kg50.0 kg
General comment The average operating data of Coal-DR, NG-DR (MID), and NG-DR (ENE) demonstration projects in China are used as the benchmark for the LCI of DR routes. LCI of COG-DR and H-DR routes, which is not scaled-up in China are estimated based on Coal-DR routes combined with literature data from simulations, laboratory tests, and process modeling in
Product flow
Materials production / Other mineralic materials 293.8 kg293.8 kg
General comment The average operating data of Coal-DR, NG-DR (MID), and NG-DR (ENE) demonstration projects in China are used as the benchmark for the LCI of DR routes. LCI of COG-DR and H-DR routes, which is not scaled-up in China are estimated based on Coal-DR routes combined with literature data from simulations, laboratory tests, and process modeling in
Product flow
Energy carriers and technologies / Electricity 446.40000000000003 MJ446.40000000000003 MJ
General comment The average operating data of Coal-DR, NG-DR (MID), and NG-DR (ENE) demonstration projects in China are used as the benchmark for the LCI of DR routes. LCI of COG-DR and H-DR routes, which is not scaled-up in China are estimated based on Coal-DR routes combined with literature data from simulations, laboratory tests, and process modeling in

Outputs

Type of flow Classification Flow Location Mean amount Resulting amount Minimum amount Maximum amount
Product flow
Materials production / Metals and semimetals 1000.0 kg1000.0 kg
General comment The average operating data of Coal-DR, NG-DR (MID), and NG-DR (ENE) demonstration projects in China are used as the benchmark for the LCI of DR routes. LCI of COG-DR and H-DR routes, which is not scaled-up in China are estimated based on Coal-DR routes combined with literature data from simulations, laboratory tests, and process modeling in
Elementary flow
Emissions / Emissions to air / Emissions to air, unspecified 0.1 kg0.1 kg
General comment The average operating data of Coal-DR, NG-DR (MID), and NG-DR (ENE) demonstration projects in China are used as the benchmark for the LCI of DR routes. LCI of COG-DR and H-DR routes, which is not scaled-up in China are estimated based on Coal-DR routes combined with literature data from simulations, laboratory tests, and process modeling in
Elementary flow
Emissions / Emissions to air / Emissions to air, unspecified 298.1 kg298.1 kg
General comment The average operating data of Coal-DR, NG-DR (MID), and NG-DR (ENE) demonstration projects in China are used as the benchmark for the LCI of DR routes. LCI of COG-DR and H-DR routes, which is not scaled-up in China are estimated based on Coal-DR routes combined with literature data from simulations, laboratory tests, and process modeling in
