Key Data Set Information | |
Location | KR |
Reference year | 2011 |
Name |
|
Use advice for data set | Users of this data set should note that it includes comprehensive inputs and outputs for the construction of soil remediation extraction wells. These include major raw materials such as PVC, sand, bentonite, and mortar, as well as essential energy consumption such as diesel for drilling equipment. When using this data for life cycle assessment, ensure that similar construction processes and conditions, like the type of contaminants and soil properties, are taken into account. Furthermore, when modeling the use phase, considerations of maintenance and operation of the SVE system should be integrated. |
Technical purpose of product or process | The data set describes the construction of three extraction wells, which are part of an in-situ soil remediation project, specifically for a soil vapor extraction (SVE) system designed to treat contaminated soil. Such wells are typically used in environmental remediation to reduce concentrations of volatile contaminants, commonly in industrial sites where chemical spills may have occurred. |
Classification |
Class name
:
Hierarchy level
|
General comment on data set | 3 wells |
Copyright | No |
Owner of data set | |
Quantitative reference | |
Reference flow(s) |
|
Technological representativeness | |
Technology description including background system | PVC 45 kg Sand 0.3 m3 , Bentonite 211 kg - Mortar 2,291 kg - drilling equipment diesel 11 L |

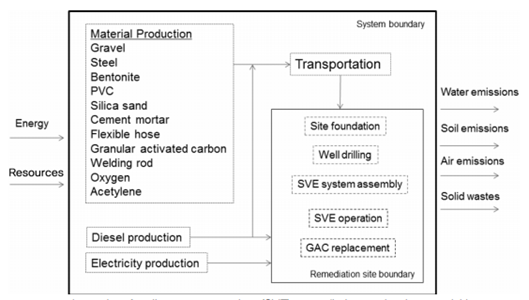

Flow diagram(s) or picture(s) |
LCI method and allocation | |||||
Type of data set | Unit process, single operation | ||||
Deviation from LCI method principle / explanations | None | ||||
Deviation from modelling constants / explanations | None | ||||
Data sources, treatment and representativeness | |||||
Deviation from data cut-off and completeness principles / explanations | None | ||||
Deviation from data selection and combination principles / explanations | None | ||||
Deviation from data treatment and extrapolations principles / explanations | None | ||||
Data source(s) used for this data set | |||||
Completeness | |||||
Completeness of product model | No statement | ||||
Validation | |||||
|
Data generator | |
Data set generator / modeller | |
Data entry by | |
Time stamp (last saved) | 2024-03-25T15:00:06+08:00 |
Publication and ownership | |
UUID | dcf5877b-f79e-464c-bdc5-67cc670f55e0 |
Date of last revision | 2024-04-20T15:02:30.535296+08:00 |
Data set version | 00.01.005 |
Permanent data set URI | https://lcadata.tiangong.world/showProcess.xhtml?uuid=dcf5877b-f79e-464c-bdc5-67cc670f55e0&version=01.00.000&stock=TianGong |
Owner of data set | |
Copyright | No |
License type | Free of charge for all users and uses |
Inputs
Type of flow | Classification | Flow | Location | Mean amount | Resulting amount | Minimum amount | Maximum amount | ||
---|---|---|---|---|---|---|---|---|---|
Product flow | Materials production / Plastics | 45.0 kg | 45.0 kg | ||||||
Elementary flow | Resources / Resources from ground / Non-renewable material resources from ground | 0.3 kg | 0.3 kg | ||||||
Elementary flow | Resources / Resources from ground / Non-renewable material resources from ground | 211.0 kg | 211.0 kg | ||||||
Product flow | Materials production / Other materials | 2291.0 kg | 2291.0 kg | ||||||
Product flow | Energy carriers and technologies / Crude oil based fuels | 0.011 kg | 0.011 kg | ||||||
Product flow | Materials production / Other materials | 25000.0 kg | 25000.0 kg | ||||||
|
Outputs
Type of flow | Classification | Flow | Location | Mean amount | Resulting amount | Minimum amount | Maximum amount | ||
---|---|---|---|---|---|---|---|---|---|
Product flow | Systems / Construction | 3.0 Item(s) | 3.0 Item(s) | ||||||
|
